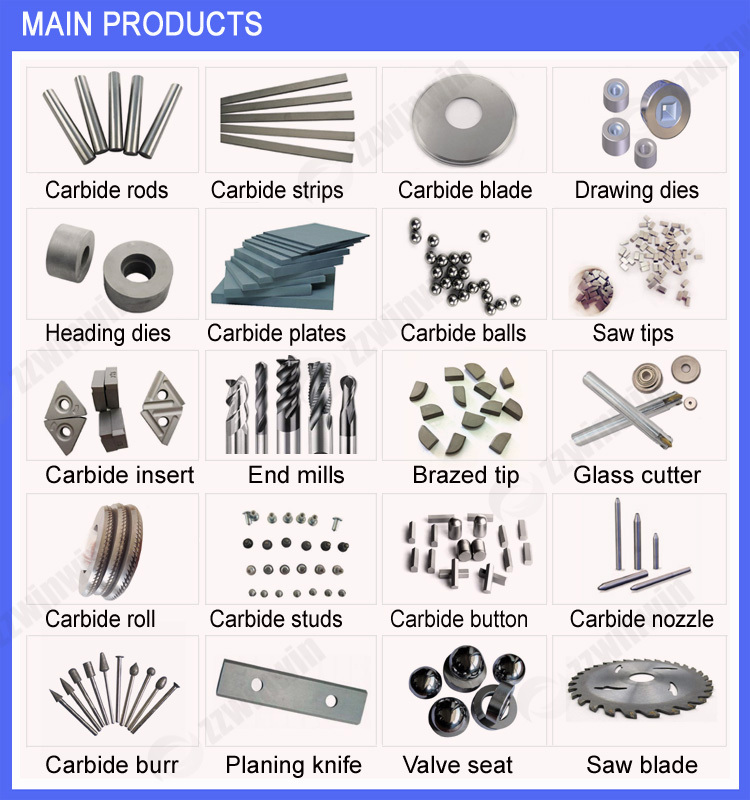

OTHER CARBIDE PRODUCTS

TUNGSTEN CARBIDE PRODUCTS range includes drill rod inserts, brazed carbide tips,tapered drill bit,VSI tips,carbide dies,carbide rods and many more other carbide products used in drilling,mining,tunneling,quarrying and construction industries. We have a skilled research and technical team which in continuously involved to give products a total reliability,durability and complete customer satisfaction.

We have a skilled research,development and technical team where the products are tested in toughest of conditions to know the quality and durability of the product before distributing it in the market so that the the manufacturers and end users get the best quality products.we believe in complete customer satisfaction and are continuously involved to deliver genuine carbide products to our clients.we can provide customers with carbide buttons according to their size ,requirement,specifications and based on their application.

DRILL ROD INSERTS

The Range of Drill Steel Inserts Provided by Global Overseas marketing is shown below

RANGE OF DRILL STEEL INSERTS

SR.NO	TYPE	DIA(mm)	SR.NO	TYPE	DIA(mm)
1	R-20-1026	26	11	R-20-1036	36
2	R-20-1027	27	12	R-20-1037	37
3	R-20-1028	28	13	R-20-1038	38
4	R-20-1029	29	14	R-20-1039	39
5	R-20-1030	30	15	R-20-1040	40
6	R-20-1031	31	16	R-20-1042	42
7	R-20-1032	32	17	R-20-1045	45
8	R-20-1033	33	18	R-20-1047	47
9	R-20-1034	34	19	R-20-1048	48
10	R-20-1035	35	20	R-20-1051	51



TAPERED DRILL BIT



We are distributors of tapered drill bit under the brand name of SANDCO.we can provide clients with tapered drill bit according to their specifications.

Diameter:	30mm, 32mm, 33mm, 34mm, 36mm, 38mm, 40mm, 41mm, 42mm	Other Names:	Tapered Button Bits Manufacturers, Tapered Bits Suppliers, Rock Bits, Drill Bits, Button Bits
Material:	Alloy Steel Bar 45CrNiMoV And Tungsten Carbide Tips YK05	Button Shape:	Ballistic
Face Type:	Flat Face	Bit Body:	Standard
Processing Type:	Forging	Technology:	Heat Treatment
Application:	Hard Rock Drilling, Mining, Quarrying, Stoning, Construction	Colour:	Gold, Black, Red, Blue, Yellow



Taper Degree:  6°, 7°, 11°, 12°



Diameter :   30mm, 32mm, 33mm, 34mm, 36mm, 38mm, 40mm, 41mm, 42mm

Buttons: 4, 5, 6, 7, 8

Brand: SANDCO

Flushing Water Hole Nos.: 1, 2, 3

Skirt: Short, Long

HOLLOW HEXAGONAL DRILL RODS

Types of drill rods	Specifications	Length(mm)	Weight (kg)
Tapered drill rods	Taper Angle: 4, 6, 7, 11, 12 degree	400mm to 8000mm	1.7 - 24.9
Integral drill steel	Bit diameter:26mm,28mm, 30mm,32mm,34mm ,36mm,38mm,40mm,42mm	400mm to 4800mm	3-15.4
Plug hole rods	Chisel bit diameter: 17mm,20mm,22mm	150mm to 710mm	0.6-2.9
